Description

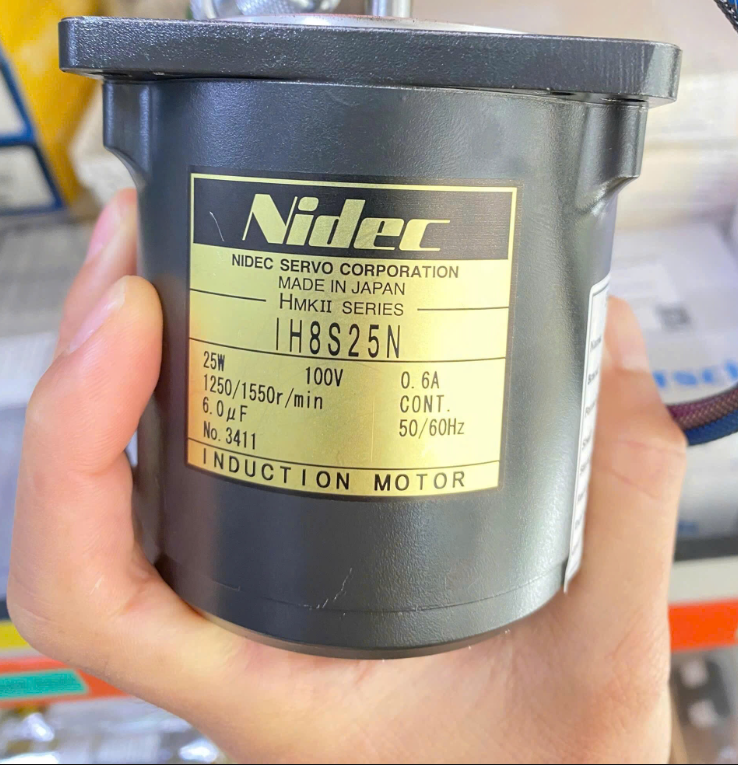

NIDEC IH8S25N
Many versions such as 100 or 200V single-phase capacitor-run, 200V 3-phase and dual-speed by pole-changing are available.
Speed and torque change when the load and/or voltage fluctuate, but the change is rather small. In the H-Series motor group, induction motors have the largest output compared with other motors of the same size, and make an easy-to-use power unit.
Product Type |
Induction Motor |
Motor Type |
Induction Motor |
Speed Control |
With Speed Control |
Series |
IH |
Motor Frame Size |
3.15 x 3.15 in |
Rated Output |
25 W |
Phase |
Single |
Voltage |
115 V |
Frequency |
60 Hz |
Input |
60 W |
Current Rating |
600 mA |
Rated Torque |
19.44 oz·in1370 x 10-4 N·m |
Rotational Speed |
1550 rpm |
Breaking Current |
2.5 A |
Starting Torque |
13.89 oz·in980 x 10-4 N·m |
Capacitor |
6.0 µF |
Fuse |
5 A |
Features |
|
Application |
|
