Description

PLF90-5-S2-P2 (use for PANASONIC MHMJ042G1U）

PLF90-5-S2-P2 90mm planetary gear reducer Ratio 10:1 for NEMA34 stepper motor shaft 14mm



Note:

1,If the diameter of your motor NOT matched, please ask if we can offer the sleeve for the shaft to match it

2,If you need the PLE circular type reducer, Please note it after order.

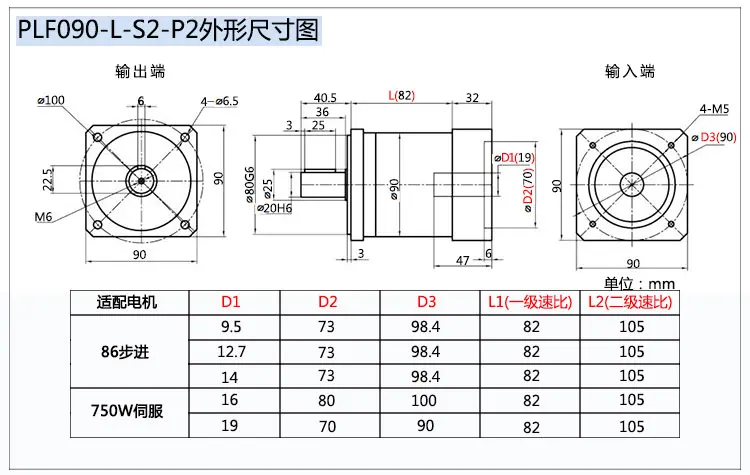

The matched motor size:

Frame	Shaft diameter	Rabbet	diagonal Screw hole distance
NEMA34	14mm	73mm	98mm



The main specification of the PLF90-5-S2-P2 planetary gear reducer:

Ratio	5:1
Rated output torque	56N.m
Maximum	1.5*rated torque
Rated Input speed	3500rpm
Maximum input speed	6000rpm
backlash	<=7 arcmin
Maximum output radial force	Fr=400N
Maximum output axial force	Fa=420N

• Output Speed

  350RPM
  Input Speed

  3500rpm
• Rated Power

  750W
  Output Torque

  56NM
• Model Number

  PLF90-5-S2-P2
  Gearing Arrangement

  Planetary
• Brand Name

  FTDCNTOP
