SICK DBS50E-SKRJ02000

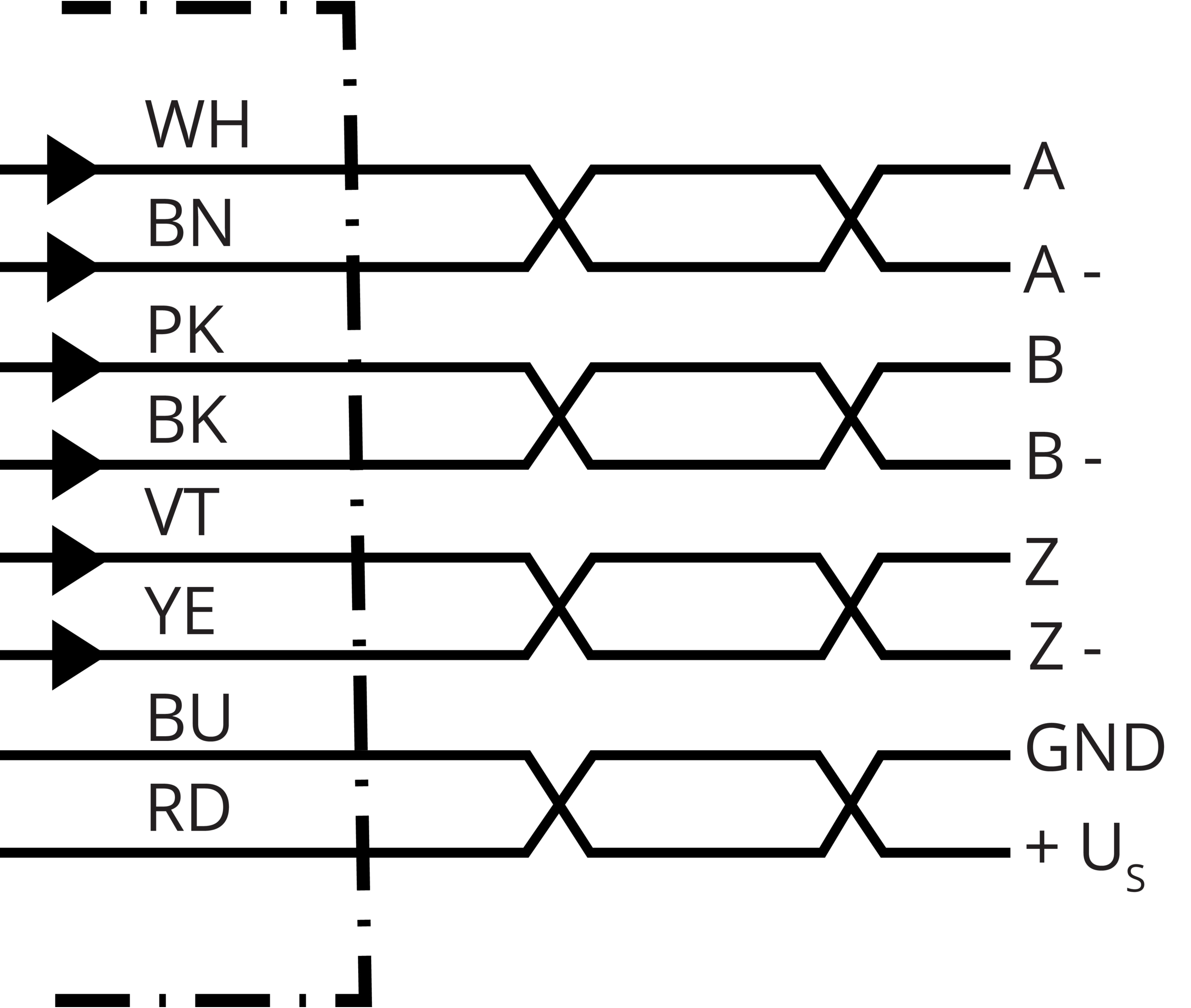

| Pulses per revolution | 2,000 |
| Measuring step | 90°, electric/pulses per revolution |
| Measuring step deviation | ± 18° / pulses per revolution |
| Error limits | ± 54° / pulses per revolution |
| Duty cycle | ≤ 0.5 ± 5 % |
| Communication interface | Incremental |
| Communication Interface detail | Open Collector |
| Number of signal channels | 3 channel |
| Initialization time | < 3 ms |
| Output frequency | ≤ 300 kHz |
| Load current | ≤ 30 mA |
| Power consumption | < 0.5 W (without load) |
| onnection type | Cable, 5-wire, universal, 0.5 m |
| Supply voltage | 4.5 … 30 V |
| Reference signal, number | 1 |
| Reference signal, position | 90°, electric, logically gated with A and B |
| Reverse polarity protection | ✔ |
| Short-circuit protection of the outputs | ✔ 1) |
| MTTFd: mean time to dangerous failure | 600 years (EN ISO 13849-1) 2) |
1) The short-circuit rating is only given if Us and GND are connected correctly.
2) This product is a standard product and does not constitute a safety component as defined in the Machinery Directive. Calculation based on nominal load of components, average ambient temperature 40°C, frequency of use 8760 h/a. All electronic failures are considered hazardous. For more information, see document no. 8015532.

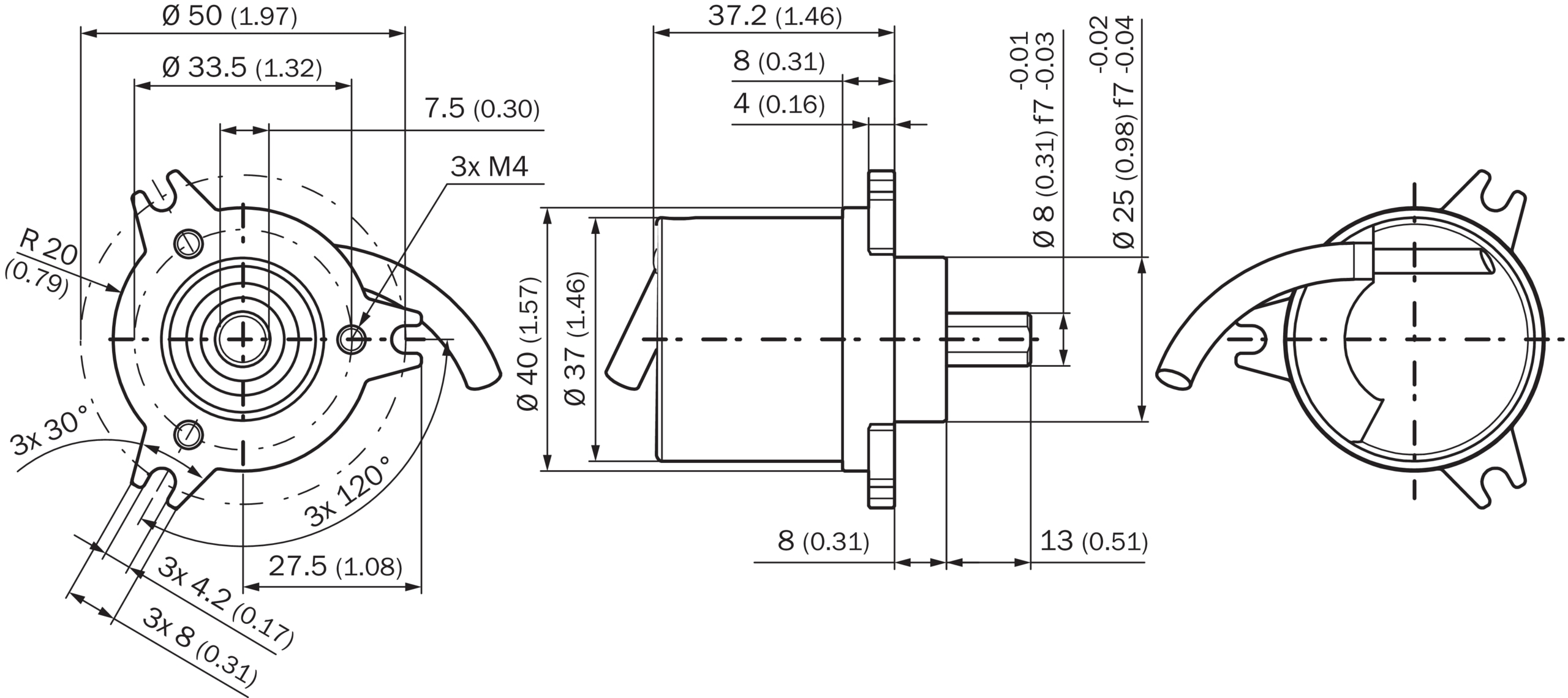

| Mechanical design | Solid shaft, face mount flange 3xM4 |
| Shaft diameter | 8 mm |
| Shaft length | 13 mm |
| Weight | + 180 g (with connecting cable) |
| Shaft material | Stainless steel |
| Flange material | Aluminum |
| Housing material | Aluminum |
| Material, cable | PVC |
| Start up torque | + 0.9 Ncm (+20 °C) |
| Operating torque | 0.6 Ncm (+20 °C) |
| Permissible shaft loading | 30 N (axial)
50 N (radial) |
| Operating speed | 6,000 min⁻¹ 1) |
| Maximum operating speed | 8,000 min⁻¹ 2) |
| Moment of inertia of the rotor | 0.65 gcm² |
| Bearing lifetime | 2 x 10^9 revolutions |
| Angular acceleration | ≤ 500,000 rad/s² |
1) Allow for self-heating of 3.3 K per 1,000 rpm when designing the operating temperature range.
2) No permanent operation. Decreasing signal quality.
| EMC | According to EN 61000-6-2 and EN 61000-6-3 (class A) |
| Enclosure rating | IP65 |
| Permissible relative humidity | 90 % (Condensation not permitted) |
| Operating temperature range | –20 °C … +85 °C, –35 °C … +95 °C on request |
| Storage temperature range | –40 °C … +100 °C, without package |
| Resistance to shocks | 100 g, 6 ms (EN 60068-2-27) |
| Resistance to vibration | 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) |
