Description
VMECA V17-G
V17
- Pressure Range: -101.3 ~ 0 kPa
- Display: Red LED turns ON
- Sensor Outputs: NPN or PNP open collector
- Weight: 50 g
Vacuum switches are a type of pressure switch that functions in the vacuum end of the pressure. Their primary purpose is to monitor vacuum status and open or close a connection when there is a change in the vacuum level.
- Pressure Range: -101.3 ~ 0 kPa
- Display: Red LED turns ON
- Sensor Outputs: NPN or PNP open collector
- Weight: 50 g
V17 series switches
| Part Number | Description |
| V17-C | Vacuum switch, LED-display, NPN 2-output, No analog supply, M8 4-pin male |

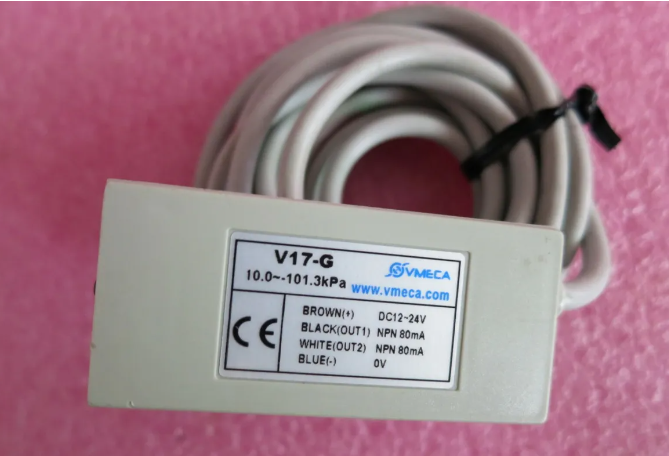

| V17-G | Vacuum switch, LED-display, NPN 2-output, No analog supply, Grommet 4-Core 2m lead-wire |
| V17-GA | Vacuum switch, LED-display, NPN 2-output, analog supply, Grommet 5-Core 2m lead-wire |
| V17-PC | Vacuum switch, LED-display, PNP 2-output, No analog supply, M8 4-pin male |
| V17-PG | Vacuum switch, LED-display, PNP 2-output, No analog supply, Grommet 4-Core 2m lead-wire |
| V17-PGA | Vacuum switch, LED-display, PNP 2-output, analog supply, Grommet 5-Core 2m lead-wire |
| VCM8-4-2 | M8-female connector, 4-pin & 2m lead-wire |
1. Basic Model
| Symbol | Description |
| V17 | Digital vacuum switch, V17 series, LED display |
2. Output
| Symbol | Description |
| 02 | PNP open collector |
| 03 | NPN open collector |
3. Analog Output
& Cable
| Symbol | Description |
| C | No analog supply, M8 4-pin male connector |
| G | No analog supply, Grommet type 4-core 2 m lead wire |
| GA | Analog supply, Grommet type 5-core 2 m lead wire |
General Specifications
| Model | V17 – PNP | V17 – NPN | |
| Applicable fluid | Filtered air, Non-corrosive & flammable gas | ||
| Pressure range | -101.0 ~ 0 kPa | ||
| Withstand pressure | 300 kPa | ||
| Pressure port | M5 female | ||
| Powel supply voltage | 12-24VDC ±10%, Ripple(P-P) ±10% or less | ||
| Powel consumption | ≤55 mA | ||
| Output | 2-PNP, Max load current: 80 mA | 2-NPN, Max load current: 80 mA | |
| Analog output | Output voltage: 1~5V≤2.5% F.S., Linearity: ≤±1% F.S. | ||
| Environment | Repeatability | ≤±0.2% F.S. | |
| Protection structure | IP40 | ||
| Operating temp. | Operation: 0~50℃, Storage:-20~60℃ (No condensation or freezing) | ||
| Operating humidity | Operation/Storage: 35~85% RH (No condensation) | ||
| Vibration resistance | Total amplitude 1.5mm or 10G, 10~55 Hz scan for 1-min, 2-hour each direction of X, Y, and Z | ||
| Shock resistance | 980 m/s² (100G), 3-time each in direction of X, Y, and Z | ||
| Temperature characteristic | ≤±2% F.S. at temp. (25℃) | ||
| Hysteresis mode | Adjustable | ||
| Window comparator | Fixed (3-digit) | ||
| Indicator accuracy | ≤±2% F.S. ±1 digit (Ambient temp.: 25±3℃) | ||
| Cable | Oil-resistance cable (0.15 mm²) | ||
